Products: Orifice Flanges

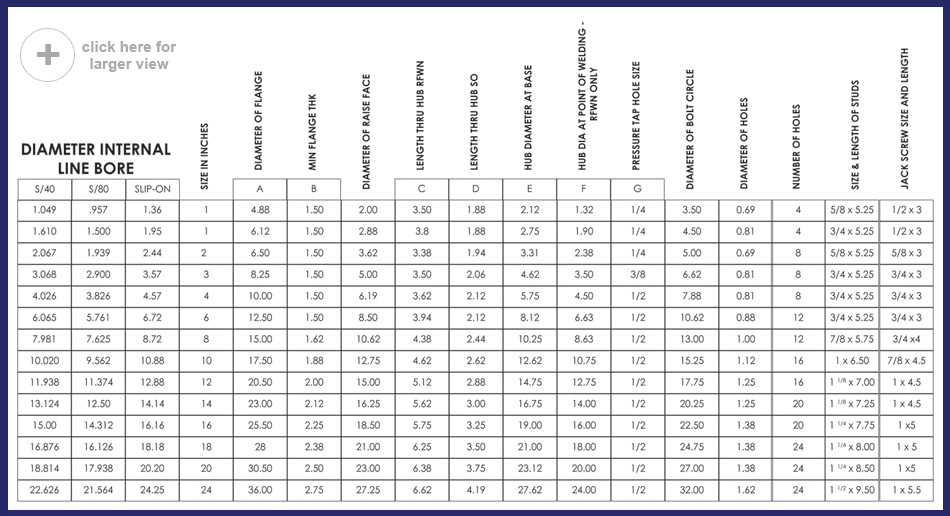

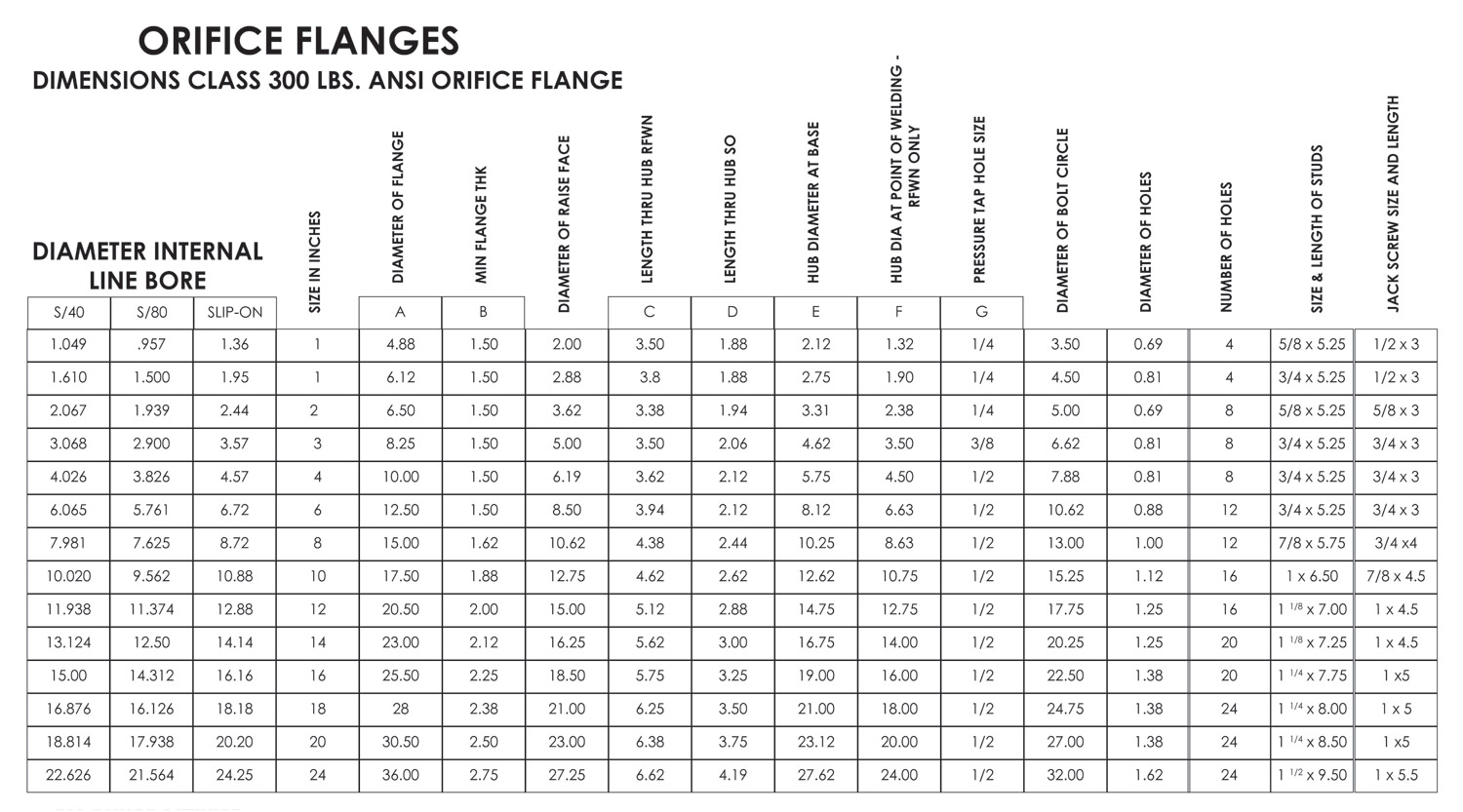

Dimensions Class 300 lbs. ANSI Orifice Flange

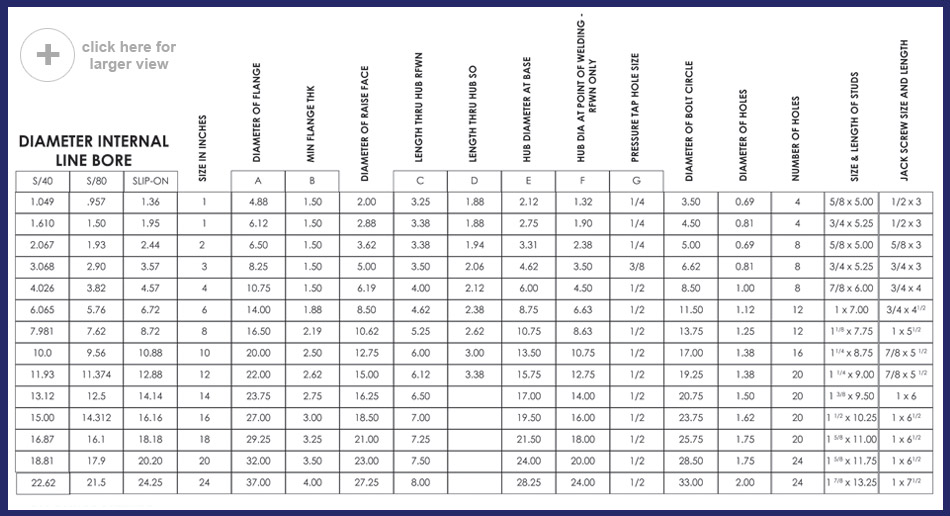

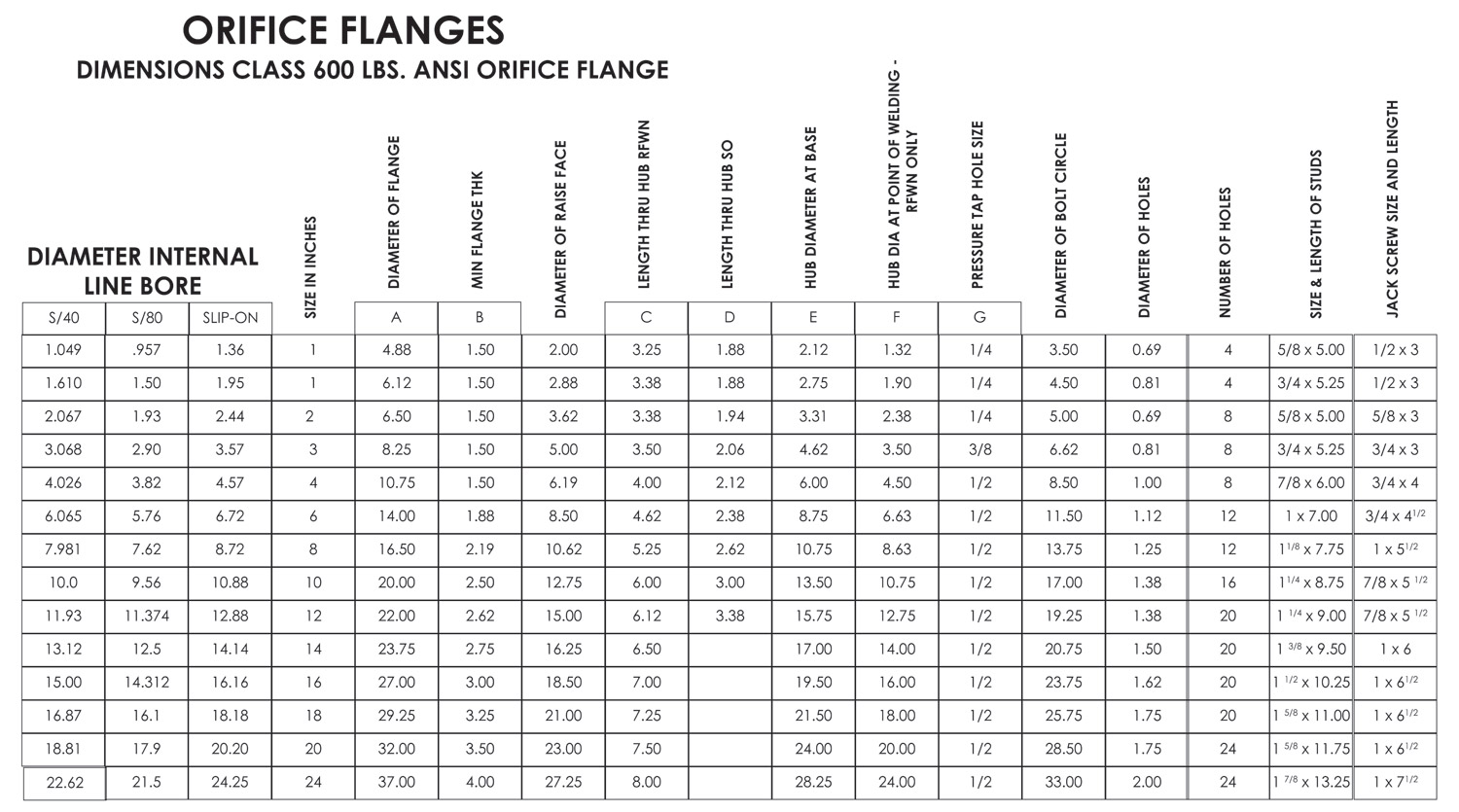

Dimensions Class 600 lbs. ANSI Orifice Flange

Gen-X offers both raised face weld neck and raised face slip-on orifice flanges in a variety of sizes and ANSI ratings. All orifice flanges are manufactured to meet or exceed AGA, ASME, IGA, and ANSI

specifications and tolerances. Standard material is A 105 forged steel. 304 and 316 stainless steels and other special materials are available upon customer request.
